一、進口彈簧全啟封閉式安全閥產品概述 品牌:美國威盾VTON 進口彈簧全啟封閉式安全閥,Spring full open type closed safety valve, 也叫封閉式安全閥,全啟封閉式安全閥,封閉全啟式安全閥,封閉式法蘭安全閥,不銹鋼封閉式氫氣安全閥,是指封閉式,彈簧全啟式結構,法蘭連接,材質有鑄鋼,不銹鋼的安全閥。 美國威盾VTON彈簧全啟封閉式安全閥適用于工作溫度≤300℃空氣、石油氣、液體等介質的設備和管路上。不銹鋼彈簧全啟封閉式安全閥適用于工作溫度≤200℃有腐蝕性的介質的設備和管路上,作為超壓保護裝置。 二、進口彈簧全啟封閉式安全閥技術參數 口徑:DN15-300 公稱壓力:PN16-320 整定壓力:PN16-320 連接方式:法蘭 結構形式:彈簧全啟封閉式 閥體材質:鑄鋼,不銹鋼 適用溫度:-40℃-550℃ 適用介質:水,油品,蒸汽以及腐蝕性介質 三、進口彈簧全啟封閉式安全閥零件材料 NO | 零件名稱 | 材料 | 1 | 閥座 | 2Cr13 | 2 | 閥體 | WCB | 3 | 調節圈 | 2Cr13 | 4 | 反沖盤 | 2Cr13 | 5 | 閥瓣 | 2Cr13+PTFE | 6 | 導向套 | 2Cr13 | 7 | 閥蓋 | ZG230-450 | 8 | 彈簧 | 50CrVA | 9 | 閥桿 | 2Cr13 | 10 | 調整螺桿 | 45 | 11 | 閥帽 | ZG200-400 |

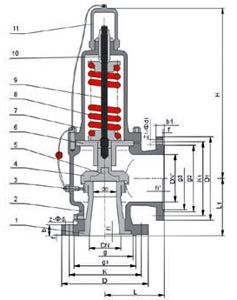

四、進口彈簧全啟封閉式安全閥連接尺寸
型號 | 公稱通徑 | do | D | K | g | g1 | b | f | f1 | Z-d | DN | D1 | K1 | g2 | b1 | f | Z1-d1 | L | L1 | ≈H | PN16 | 20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | 25 | 16 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | 32 | 20 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | 40 | 25 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | 50 | 32 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | 65 | 40 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | 80 | 50 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | 100 | 65 | 220 | 180 | / | 155 | 22 | 3 | / | 8-18 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | 125 | 80 | 250 | 210 | / | 185 | 22 | 3 | / | 8-18 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | 150 | 100 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | 200 | 125 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | 250 | 150 | 405 | 355 | / | 320 | 30 | 3 | / | 12-26 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | 300 | 220 | 460 | 410 | / | 375 | 30 | 4 | / | 12-26 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 | 350 | 250 | 520 | 470 | / | 435 | 34 | 4 | / | 16-26 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1520 | 400 | 280 | 580 | 525 | / | 485 | 36 | 4 | / | 16-30 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1530 | PN25 | 20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | 25 | 16 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | 32 | 20 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | 40 | 25 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | 50 | 32 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | 65 | 40 | 185 | 145 | / | 120 | 22 | 3 | / | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | 80 | 50 | 200 | 160 | / | 135 | 22 | 3 | / | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | 100 | 65 | 230 | 190 | / | 160 | 24 | 3 | / | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | 125 | 80 | 270 | 220 | / | 188 | 28 | 3 | / | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | 150 | 100 | 300 | 250 | / | 218 | 30 | 3 | / | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | 200 | 125 | 360 | 310 | / | 278 | 34 | 3 | / | 12-26 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | 250 | 150 | 425 | 370 | / | 332 | 36 | 3 | / | 12-30 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | 300 | 220 | 485 | 430 | / | 390 | 40 | 4 | / | 16-30 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 | PN40 | 20 | 15 | 105 | 25 | 51 | 55 | 16 | 2 | 4 | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | 25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | 32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | 40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | 50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | 65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | 80 | 50 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | 100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | 125 | 80 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | 150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | / |
注:空氣或其他氣體介質用安全閥,一般選用封閉全啟式彈簧安全閥; |
